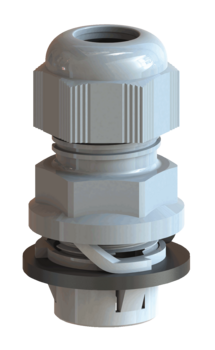

Euro-Top FrontFix

Euro-Top FrontFix

Mounted at lightning speed – completely without connection thread

The new Euro-Top FrontFix is a unique and to date one-of-a-kind cable gland concept, which eliminates the need for traditional connection technology using threaded fittings or lock nuts. A special locking mechanism simplifies assembly considerably and means that time savings of approx. 70 percent can be achieved realistically compared with commercially available threaded cable glands.

Advantages:

A special spring element stabilises the cable gland directly after it is engaged in the through-hole and reliably prevents the cable gland from twisting during assembly. This is a crucial advantage especially in case of applications in confined spaces that are difficult to access.
One-handed front mounting can be completed easily in under six seconds without the need for special tools.
FrontFix can be used flexibly with enclosure wall thicknesses of between 0.5 mm and 4.0 mm.
Requirements for commercially available cable glands are fulfilled fully. This essentially relates to strain relief and the protection class (IP66, IP68).
FrontFix can be disassembled without difficulty and therefore also re-used repeatedly.
Costs for complicated and time-consuming threaded holes or lock nuts do not arise.
Cap nuts and connecting pieces each have clockwise threads. This offers an advantage over similar solutions, which generally have a counterclockwise thread on the connecting piece and a clockwise thread on the cap nut.
Cap nuts and connecting pieces have identical width across flats.

Click here to activate
Marketing / Multimedia Cookies
and show the content.

Applications

Automation
Electrical engineering
Solar and wind power
Machinery and plant engineering
Enclosure technology and switch cabinet construction

product request Euro-Top FrontFix Polyamide

product request Euro-Top FrontFix Nickel Plated Brass

» Click here to order your free sample

	M16	M20	M25	M32	M40
RAL 7035:
RAL 7001:
RAL 9005:
Brass, nickelplated
